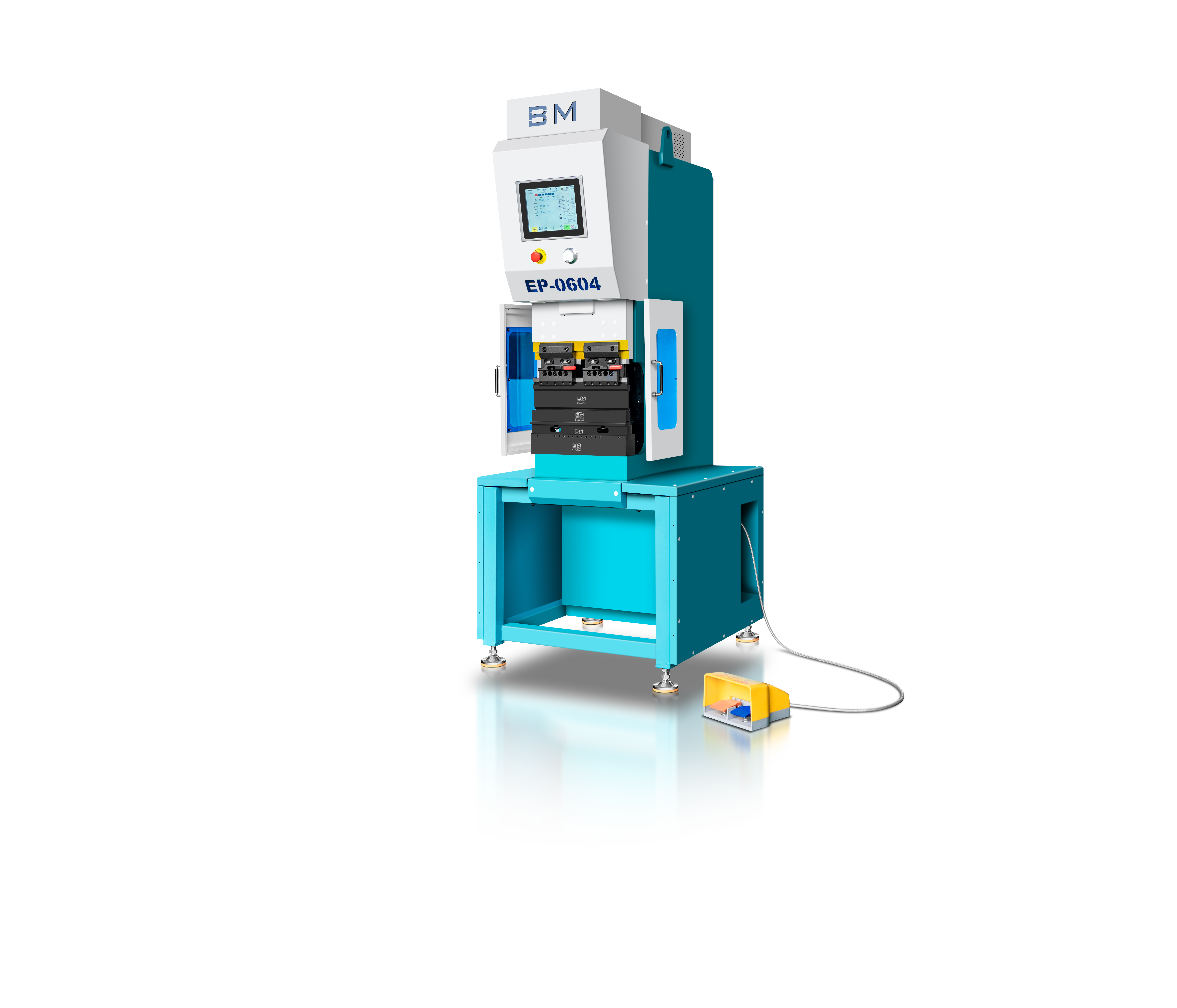

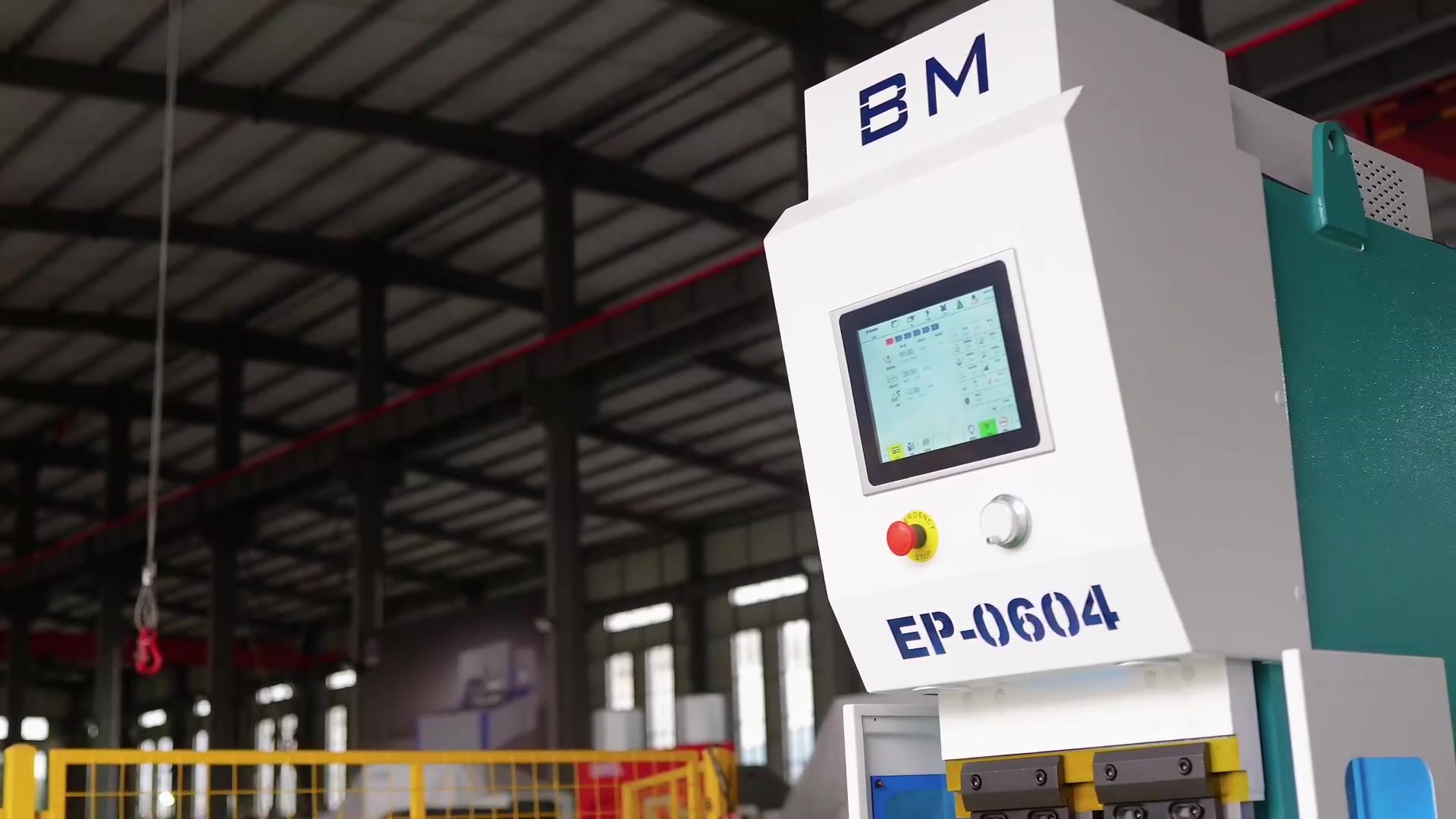

Mini Electric Press Brake
Product Video
Advantage
Energy efficient, high speed and stable
1.EP series bending machines do not need hydraulic oil, using electric cylinder drive, so as to avoid hydraulic pollution and oil temperature for the machine accuracy and other issues;
2. bending by the servo motor drive cylinder, fast down and back servo motor power consumption is very small, so this equipment is very energy-saving, and the same series of hydraulic bending machine energy saving more than 50%;
Patented electric cylinder structure technology
The structure of the electric cylinder is our patented technology, adopting heavy-duty high-precision ball screws with high precision and long service life;
Reliable backgauge
Patented anti-bias load structure
Ductile cast iron structure
Gantry machining centre

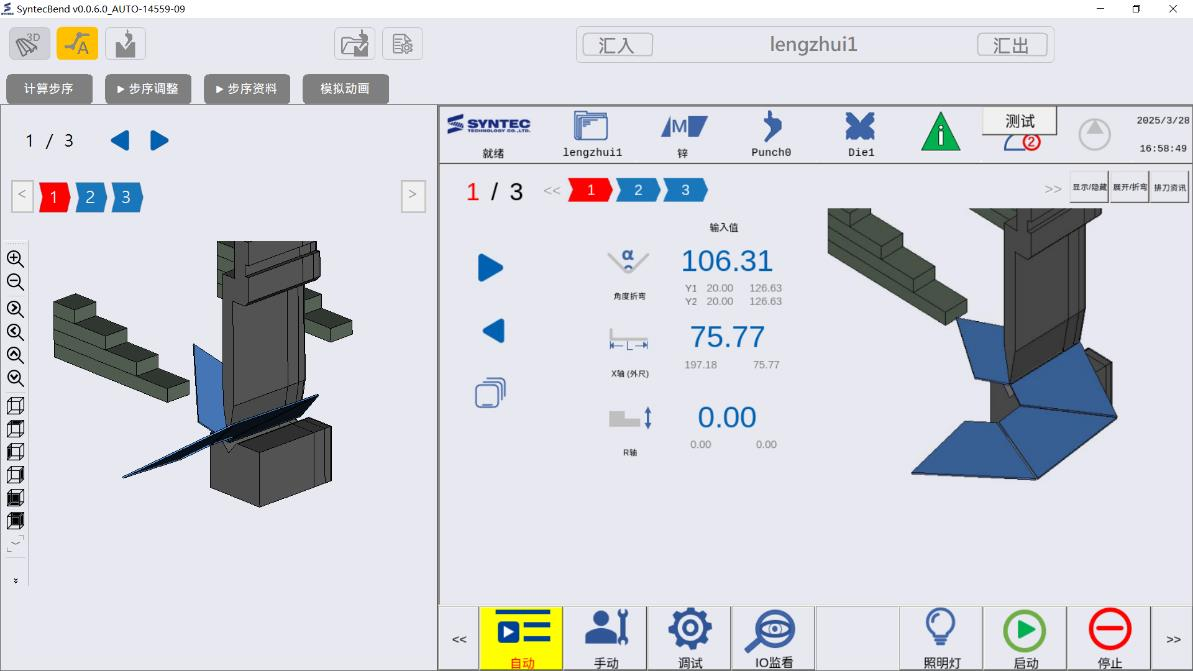

Control system
According to the number of CNC axes and different configurations, we can choose self-developed system ES10, ET15, or DelemDA52S, DA53T, DA58T, DA66T, DA69T.
Sample
Application Industry
Technical Parameter
|
Main Technical Parameters |
|||||
|
Parameter |
EP SERIES |
||||
|
EP03-02 |
EP06-04 |
EP12-06 |
EP18-08 |
||
|
Bending force |
T |
3 |
6 |
12 |
18 |
|
Table length |
MM |
230 |
400 |
600 |
800 |
|
Slide stroke |
MM |
120 |
120 |
120 |
120 |
|
Column spacing |
MM |
250 |
370 |
520 |
770 |
|
Throat depth |
MM |
- |
150 |
150 |
250 |
|
Back gauge stroke |
MM |
150 |
150 |
150 |
250 |
|
Approach speed |
MM/S |
200 |
200 |
2002 |
200 |
|
Working speed |
MM/S |
＜30 |
＜30 |
＜30 |
＜30 |
|
Max. Opening height |
MM/S |
420 |
420 |
420 |
420 |
|
Axis |
|
2 |
2 |
2 |
3 |
